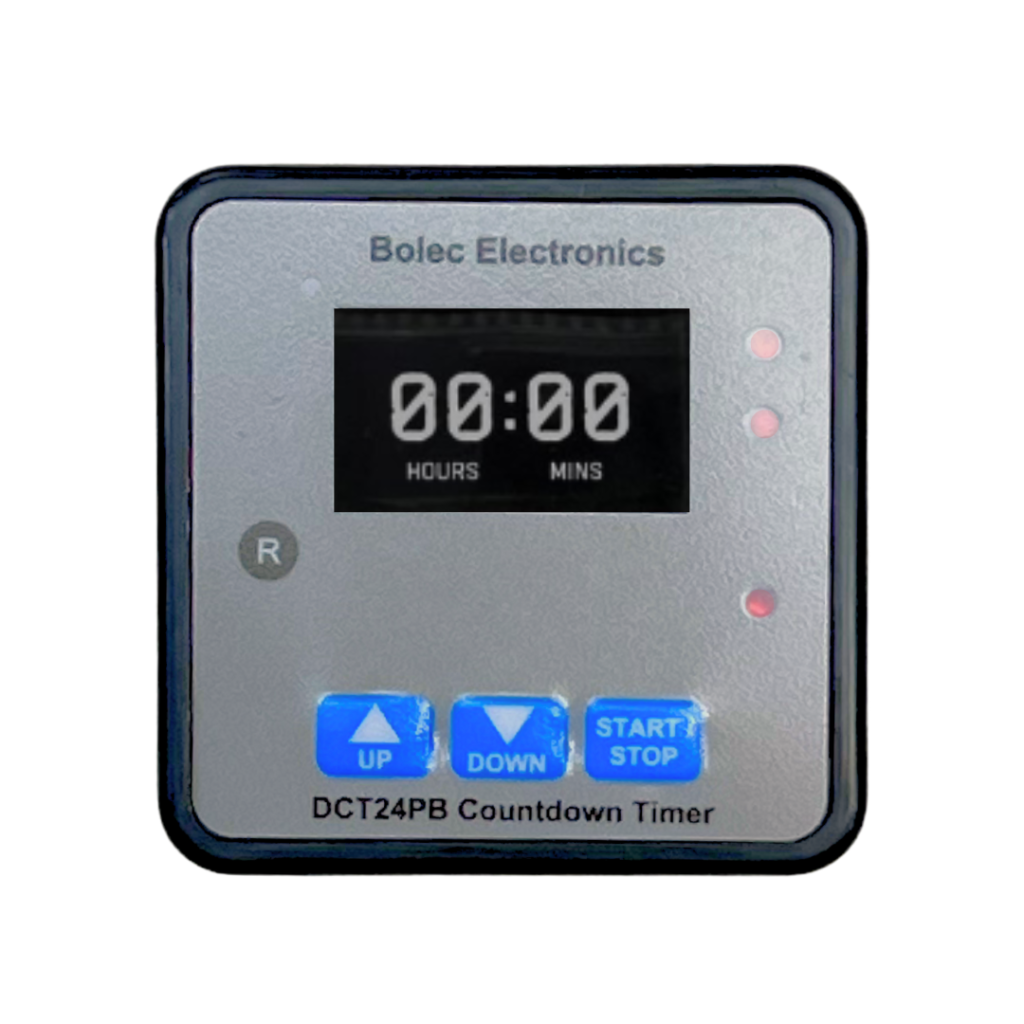

Bolec Electronics DCT24PB Digital Countdown Timer – 12V
$280.00
The DCT24PB is a 12VDC electronic countdown timer with similar functions to the
ISG12 & ISG24, using dedicated push-button controls. Its 44.7 × 44.7 mm front
is designed to suit a standard 45 mm square panel cut-out and is designed as a
direct panel-size replacement for Powerite BCT2 and BCT2S timers in compatible 12V installations.
- Adjustable electronic countdown up to 24 hours
- Dedicated push-button operation
- Volt-free C / NO / NC relay contacts
- Contact rating: 1 A at 30 VDC resistive
- 44.7 × 44.7 mm front for a standard 45 mm square cut-out
- External backup support if the main supply is interrupted
Replacing a Powerite BCT2 or BCT2S?
The front dimensions suit the standard 45 mm square opening. Confirm supply voltage, terminal wiring and connected load before installation.
Prefer rotary-dial control?
View the DCT24ENC rotary-dial countdown timer
Product document:
The document below includes the DCT24PB datasheet, dimensions, specifications, operating instructions and installation information.
View DCT24PB Datasheet & Instruction Manual
Product resources
BOLEC Product catalogue / Operating guide
Electronic countdown timer
DCT24PB
12V push-button countdown timer with volt-free changeover relay contacts
- 12 VDC
- Up to 24 hours
- C / NO / NC contacts
- 44.7 mm front / 45 mm cut-out
bolec.com.au | sales@bolec.com.au | 0480 312 400
DCT24PB Digital Countdown Timer
Push-button 45 mm electronic timer for ISG12, ISG24, Powerite BCT2 and BCT2S applications
The DCT24PB is a 12VDC electronic countdown timer with similar functions to the ISG12 & ISG24, using dedicated push-button controls instead of a mechanical wind-up mechanism. Its 44.7 × 44.7 mm front suits a standard 45 mm square panel cut-out and is designed as a direct panel-size replacement for Powerite BCT2 and BCT2S timers in compatible 12V installations.
It provides adjustable countdown control for pumps, fans, lights and other equipment that must operate for a preset period of up to 24 hours.- Electronic countdown up to 24 hours
- Dedicated push-button operation
- Volt-free C / NO / NC output
- External backup support
- Powerite BCT2 / BCT2S panel-size replacement
A4 product guide — print or choose “Save as PDF”.
Overview
Electronic countdown control with dedicated push buttons
A practical digital alternative for applications where separate buttons are preferred for setting and operating the timer.Push-button operation
Dedicated controls provide a clear alternative to rotary-dial or mechanical wind-up timers.Changeover relay output
Volt-free common, normally open and normally closed contacts suit a range of low-voltage control circuits.Panel replacement format
The 44.7 × 44.7 mm front is designed for a standard 45 mm square panel opening.Backup support
An external backup supply can retain the remaining countdown time if the main supply is interrupted.Industrial and irrigation use
Suitable for timed operation of pumps, fans, lighting and other controlled equipment.Specifications
Electrical rating and panel requirements
| Supply voltage | 12 VDC |
|---|---|
| Countdown range | Up to 24 hours |
| Control style | Dedicated push-button operation |
| Relay contacts | Volt-free changeover contacts: C / NO / NC |
| Contact rating | 1 A at 30 VDC, resistive load |
| Front dimensions | 44.7 × 44.7 mm |
| Panel cut-out | Standard 45 mm square cut-out |
| Replacement applications | Direct panel-size replacement for Powerite BCT2 and BCT2S timers in compatible 12V installations, subject to terminal wiring and load verification |

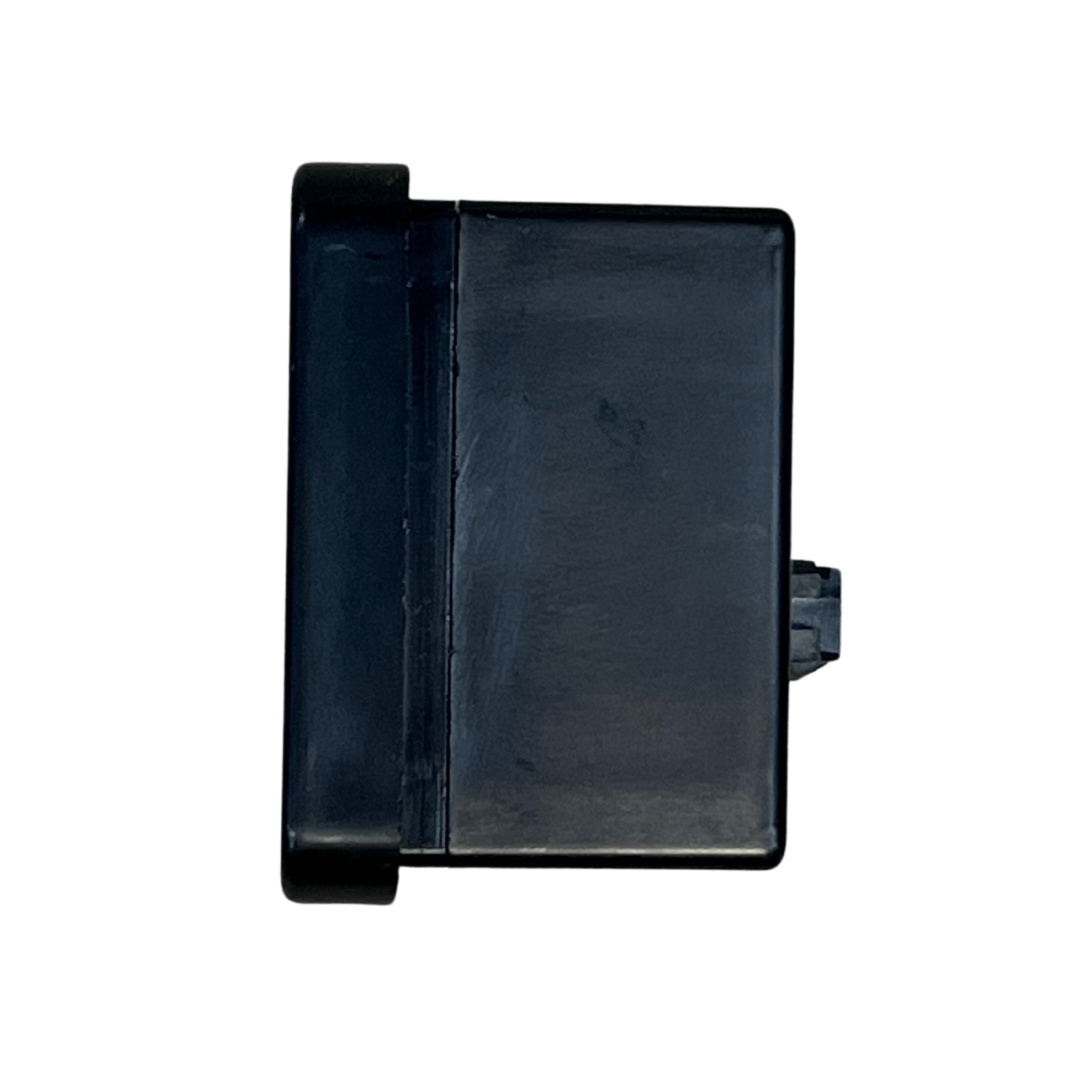

| Case depth | 26 mm behind the panel |
| Recommended rear clearance | Minimum 50 mm including connector clearance |
| Backup | External backup support to retain remaining countdown time during a main-supply interruption |
Replacing an existing timer The panel opening may be compatible, but confirm supply voltage, terminal wiring and connected load before installation.

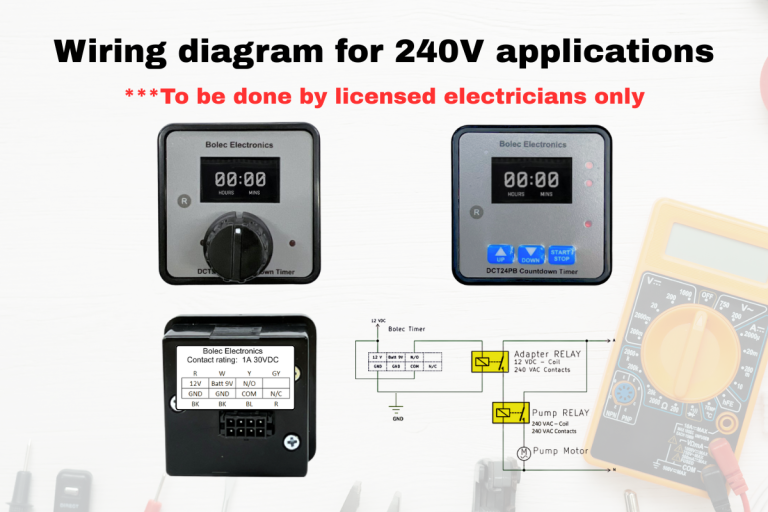

Control higher-current or 240VAC loads through an external relay
The DCT24PB does not switch 240VAC directly. Its 1 A / 30 VDC volt-free output can energise the coil of a suitably rated external relay or contactor, which then switches the connected load.- Use the timer output to operate the external relay coil.
- Fit a back-EMF protection diode across a DC relay coil to protect the timer from voltage spikes.
- Applications can include timed fans, lights, heaters, compressors and pump-control circuits.
All 240V wiring must be completed by a licensed electrician.

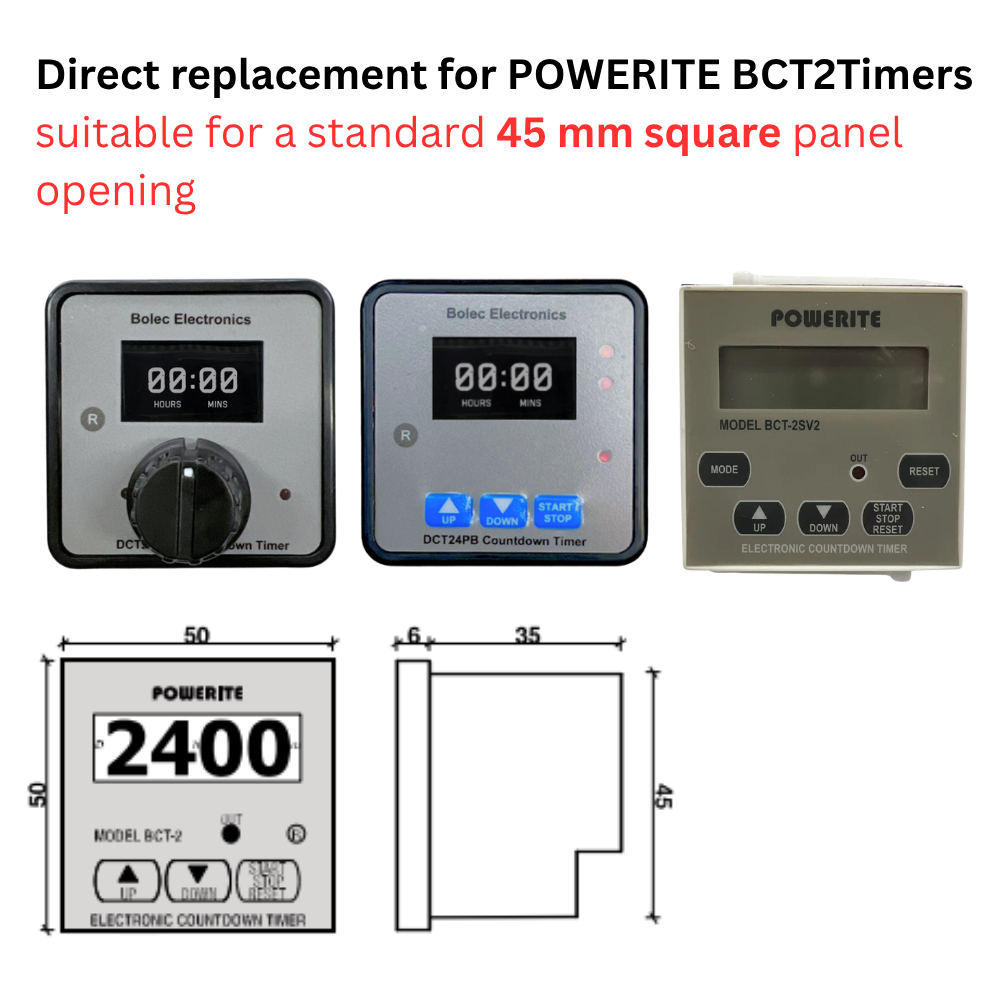

View the external relay wiring guideReplacement fitting guide
Powerite BCT2 / BCT2S and standard 45 mm panel opening
This comparison shows the DCT24PB push-button model, DCT24ENC rotary model and Powerite BCT2S timer, together with the standard 45 mm square panel fitting dimensions.
Operating and installation guide

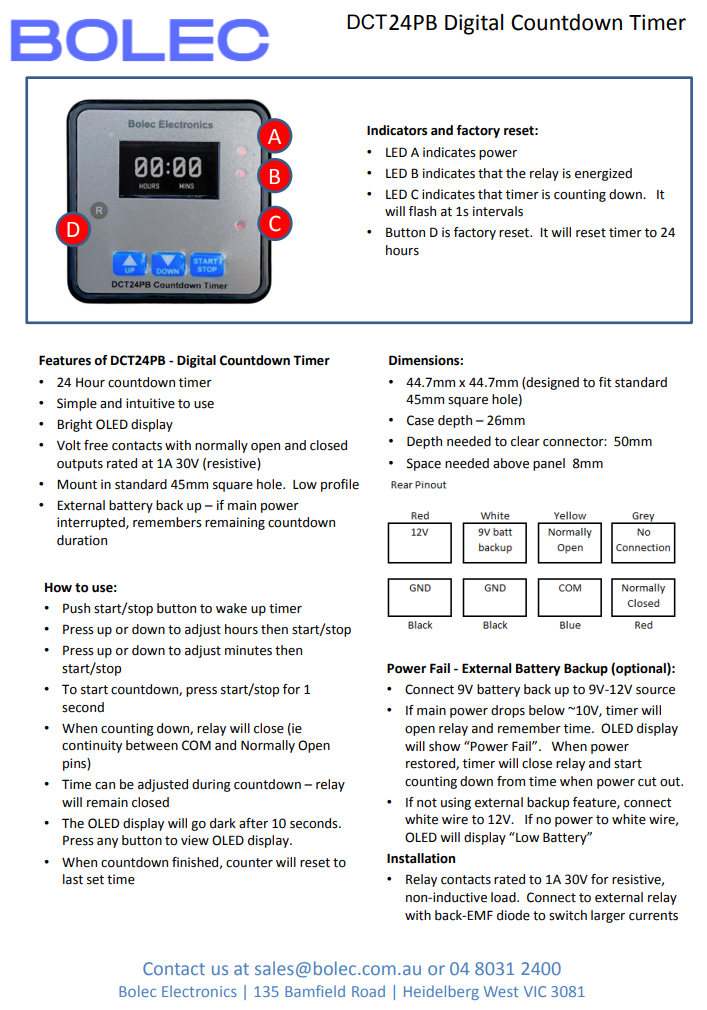

DCT24PB reference diagram
The existing product guide is retained below for quick visual reference. Alternative model
Prefer a single rotary dial?
The DCT24ENC provides the same compact panel format with rotary-dial and push-button control.
DCT24ENC Rotary-Dial Timer
Choose the rotary model where one-dial operation is preferred. View DCT24ENCFAQ
Common DCT24PB questions
Is the DCT24PB similar to an ISG12 or ISG24 timer?
It provides similar countdown-timer functions, with the timing carried out electronically and operated through dedicated push buttons.
Can the DCT24PB replace a Powerite BCT2 or BCT2S?
It is designed as a direct panel-size replacement in compatible 12V installations. The 44.7 × 44.7 mm front suits the standard 45 mm square panel opening. Confirm terminal wiring and connected load before installation.
What is the maximum countdown time?
Up to 24 hours.
What are the relay contacts rated for?
The volt-free changeover contacts are rated at 1 A at 30 VDC for a resistive load.
Can it switch a high-current or 240VAC load directly?
No. Use a correctly rated external relay or contactor. All mains wiring must be completed by a licensed electrician.
Documents and support
Datasheet, instructions and application assistance
View datasheet & instruction manualProduct specifications, dimensions, installation and operating information in one document. External relay wiring guideLearn how to control higher-current or 240VAC loads through a suitable external relay. Technical supportCheck load ratings, relay selection and panel installation.
Application guides
Related guides
Read practical application notes and product guides from Bolec Electronics.
You may also like…
Related products
- Sale!
Bolec ORIGINAL Matte black Roof Clamps – Set of 4
Original price was: $105.00.$100.00Current price is: $100.00.Add to cart -
Bolec Four Channel Programmable Timer Lead time 10 business days
$850.00Add to cart -
Powerite B7PT 7Days Programmable Timer – 12V
$295.00Add to cart -

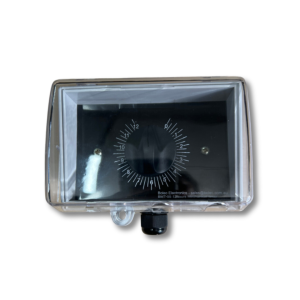

BMT-55 12 hours Mechanical timer in enclosure – farmers pump timer -Analogue timer switch
$385.00Add to cart -

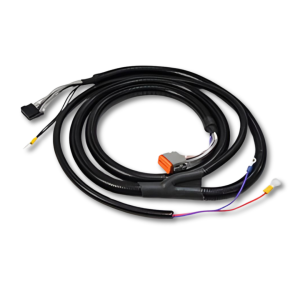

3M wiring harness for BEM502 panels
